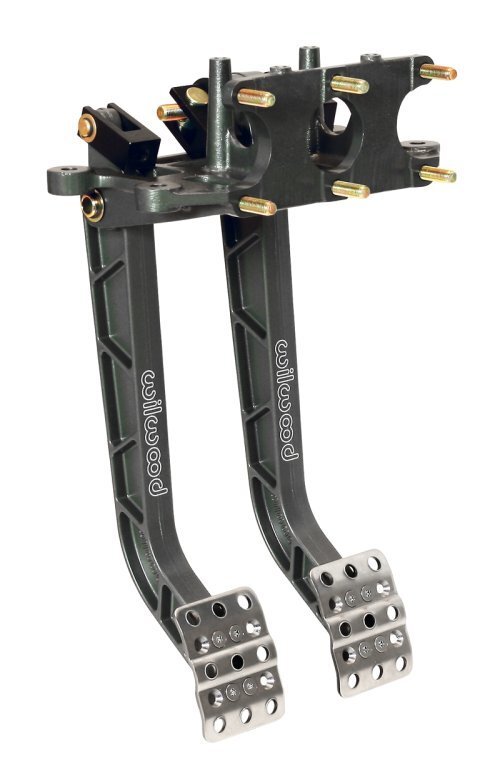

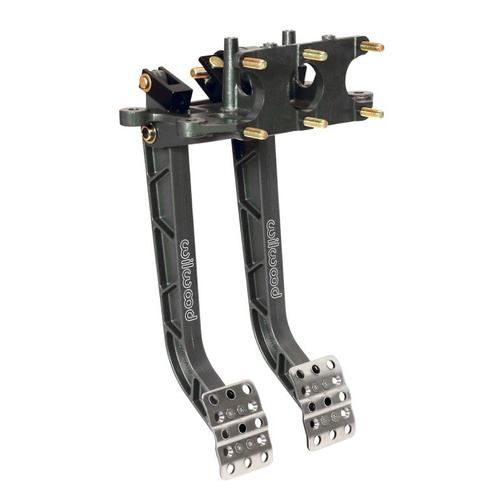

Adjustable Reverse Mount Triple Master Cylinder Pedal Assembly (WB340-11299)

Clutch & Brake, 6.25:1 Pedal Ratio


Wilwood's adjustable reverse mount pedal assembly combines the brake and clutch pedals together in one unit and positions the master cylinders inside the firewall, away from engine heat. It features all aluminium frame and forged aluminium pedal arms with ladder style construction. Pedal pads are of special adjustable design that allows fine-tuning of the pedal location and clearance. A new clevis/pivot pin balance bar assembly provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. This assembly creates a 6.25 to 1 pedal ratio on both clutch and brake pedals. Note pedals are shown with optional master cylinders which must be ordered separately.
